MST-3000 Series
A next-generation Multi-Service Provisioning Platform integrating SDH, PCM, DXC, and IPPBX into a single powerful system.
View FeaturesSystem Overview
The MST-3000 Series bridges the gap between backbone and access networks. It provides high-capacity transmission and versatile service ports by integrating legacy PCM services, digital cross-connection, and modern IP-based communication into one unified chassis.
All-in-One Integration
Combines SDH, PCM (64K), DXC, TDM over IP, and IPPBX functionality. Reduces network complexity and saves rack space.
Versatile Connectivity
Supports STM-1/4/16, Ethernet (GE/FE), E1, and legacy interfaces like FXO, FXS, RS232, and V.35 for diverse applications.
High Reliability
Features full 1+1 protection for power, cross-connection matrix, and uplink/downlink cards to ensure non-stop operation.

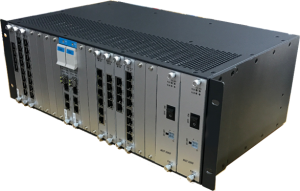

Product Design & Specs
Technical Highlights
- Dimensions 159mm(H) × 484mm(W) × 276mm(D)
- Slots 19+ Slots for Service Cards
- Capacity 192×192 VC4 / 4032×4032 VC12
- Optical Ports STM-1 / STM-4 / STM-16 Support
- Legacy Support E1, FXO/FXS, RS232, V.35
- Power AC/DC Dual Redundancy
Key Specifications & Benefits
Massive Capacity
Supports 192x192 VC4 high-order and 4032x4032 VC12 lower-order cross-connections for flexible bandwidth management.
Cost Efficiency
Delivers high performance at low cost by replacing multiple separate devices with a single integrated solution.
Dual Power Supply
Supports flexible power redundancy options (AC+AC, DC+DC, or AC+DC) to adapt to any field environment.
Easy Management
Full support for SNMP and NMS allows for convenient remote monitoring and configuration of the entire network.
Want to know more details?
Download our detailed brochure for technical specifications.
Download Brochure
